Perforated cable trays and connectors

LSSU 110

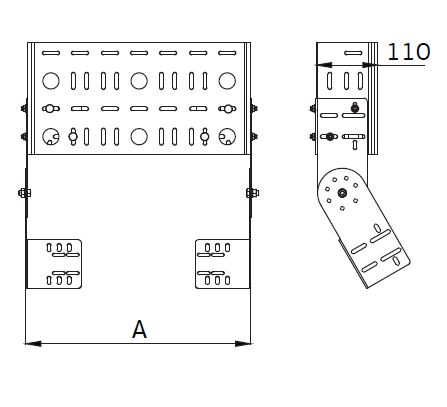

LSSU-110 Sc

11lsu110nac

Label A H Thickness Mass Stock Number
[mm] [mm] [mm] [kg]
LSSU-100/110 103 110 0,70 4,60 133045
LSSU-200/110 203 110 0,70 3,37 133046
LSSU-300/110 303 110 0,90 5,29 133047
LSSU-400/110 403 110 0,90 5,50 133048
LSSU-500/110 503 110 1,25 6,71 133049
LSSU-600/110 603 110 1,25 7,10 133050

LSSU-110 Tc

11lsu110nac

Label A H Thickness Mass Stock Number
[mm] [mm] [mm] [kg]
LSU-100/110 100 110 0,80 1,71 133051
LSU-200/110 200 110 0,80 1,84 133052
LSU-300/110 300 110 1,00 2,15 133053
LSU-400/110 400 110 1,00 2,29 133054
LSU-500/110 500 110 1,25 2,89 133055
LSU-600/110 600 110 1,25 3,12 133056
