Perforated cable trays and connectors

    You are here:
  1. Home
  2. Cable supporting systems
  3. Perforated cable trays and connectors
  4. 60 mm
  5. 45° SHSU-60

45° SHSU-60 Sc

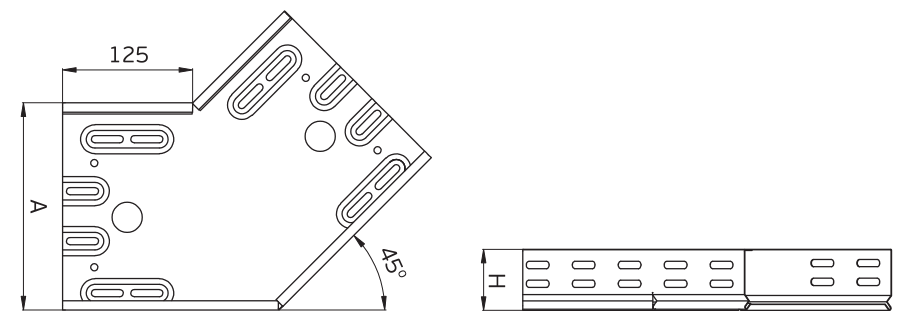

Label A Height Thickness Mass Stock Number
[mm] [mm] [mm] [kg]
SHSU-50/30 50 30 0,55 0,13 105915
SHSU-100/60 100 60 0,70 0,36 105916
SHSU-200/60 200 60 0,70 0,62 105917
SHSU-300/60 300 60 0,90 1,06 105918
SHSU-400/60 400 60 0,90 1,65 105919
SHSU-500/60 500 60 1,25 2,60 118527
SHSU-600/60 600 60 1,25 3,38 113246

45° SHSUL-60 Sc



Label A Height Thickness Mass Stock Number
[mm] [mm] [mm] [kg]
SHSUL-100/60 100 60 0,55 0,28 117459
SHSUL-200/60 200 60 0,55 0,49 117460
SHSUL-300/60 300 60 0,70 0,82 117461
SHSUL-400/60 400 60 0,70 1,28 117462
SHSUL-500/60 500 60 0,90 1,87 134313
SHSUL-600/60 600 60 0,90 2,43 134314

45° SHSU-60 Tc



Label A Height Thickness Mass Stock Number
[mm] [mm] [mm] [kg]
SHSU-50/30 50 30 0,80 0,18 112914
SHSU-100/60 100 60 0,80 0,50 112915
SHSU-200/60 200 60 0,80 0,87 107295
SHSU-300/60 300 60 1,00 1,43 112916
SHSU-400/60 400 60 1,00 2,23 107294
SHSU-500/60 500 60 1,25 4,42 112917
SHSU-600/60 600 60 1,25 6,08 112918


45° SHSU-60 Inox


Label A H L Thickness Mass Stock Number W.Nr.:
[mm] [mm] [mm] [mm] [kg/m] 1.4301 1.4404 1.4571
SHSU-50/30 50 30 2000 0,50 0,12 125751 126504 126511
SHSU-100/60 100 60 2000 0,60 0,31 125752 126505 126512
SHSU-200/60 200 60 2000 0,60 0,53 125753 126506 126513
SHSU-300/60 300 60 2000 0,80 0,94 125754 126507 126514
SHSU-400/60 400 60 2000 0,80 1,47 112149 126508 126515
SHSU-500/60 500 60 2000 1,00 2,08 125755 126509 126516
SHSU-600/60 600 60 2000 1,00 2,70 125756 126510 126517

45°SHSU-60 E30/90 Sc



Label A Height Thickness Mass Stock Number
[mm] [mm] [mm] [kg]
SHSU-50/30 50 30 0,55 0,13 132856
SHSU-100/60 100 60 0,70 0,36 122286
SHSU-200/60 200 60 0,70 0,62 122287
SHSU-300/60 300 60 0,90 1,06 122288
SHSU-400/60 400 60 0,90 1,65 122289
